Thread: New Project




Reply To Thread
Page 5 of 7 FirstFirst 1 2 3 4 5 6 7 LastLast
Results 61 to 75 of 92
  1. #61
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

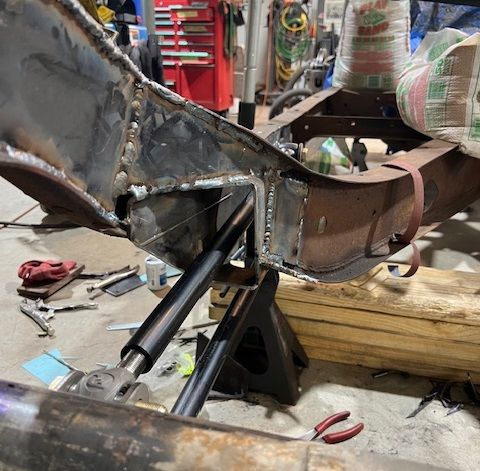

    another pic/view
    NTFDAY likes this.

  2. #62
    v8nutz's Avatar
    v8nutz is offline CHR Member Visit my Photo Gallery
    Join Date
    Nov 2016
    Location
    rocklin
    Posts
    639

    That looks like a tricky one to do, nice job.

  3. #63
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

    Quote Originally Posted by v8nutz View Post
    That looks like a tricky one to do, nice job.
    Thanks v8nutz. I just hope my engineering is what it should be. it seems like this could be done in few hours or so, but it took me at 4 days to get it all figured out. Measure cut remeasure cut a touch more. Had the other side cut out in less than an hour with a better fit.
    johnboy and v8nutz like this.

  4. #64
    rspears's Avatar
    rspears is offline CHR Member/Contributor Visit my Photo Gallery
    Join Date
    Sep 2007
    Location
    Gardner, KS
    Car Year, Make, Model: '33 HiBoy Coupe, '32 HiBoy Roadster
    Posts
    11,165

    Since that center X is there to prevent twist of the main rails I believe it's plenty stout, Navy. If anyone wants to look, show them the second side as your example!!
    Roger
    Enjoy the little things in life, and you may look back one day and realize that they were really the BIG things.

  5. #65
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

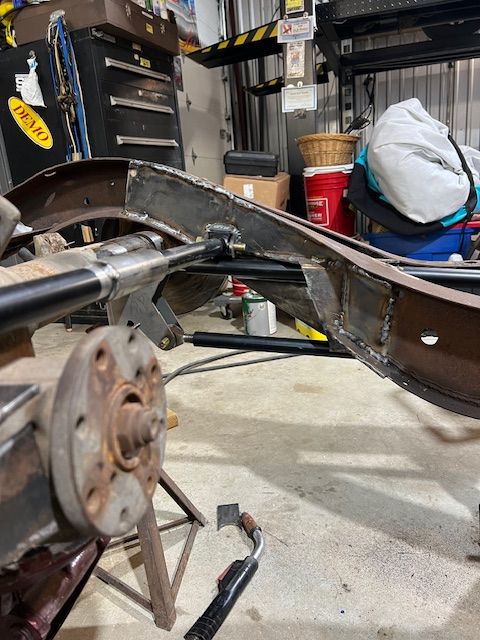

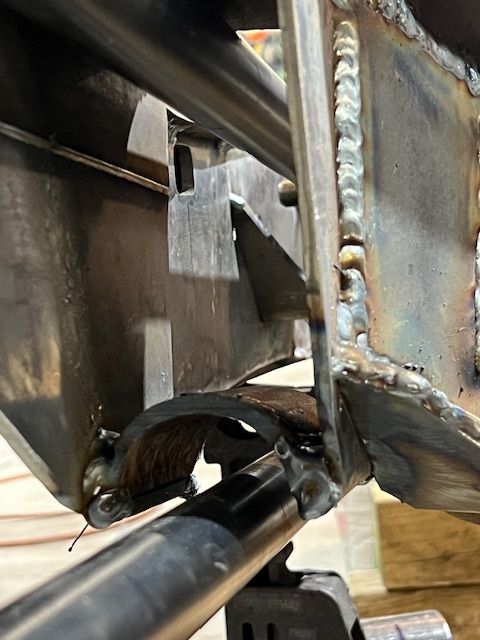

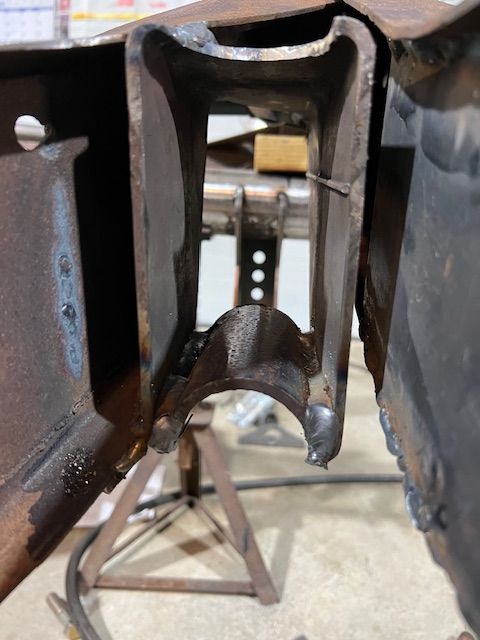

    well I decided to do another mod to gain max travel of bars past the intended travel points just for that peace of mind. 1/8 inch is to close so now I'll have 1/2" or better.
    I cut a 3/16" wall tube in half giving me and extra 1" clearance on the bottom end.


    NTFDAY, rspears and v8nutz like this.

  6. #66
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

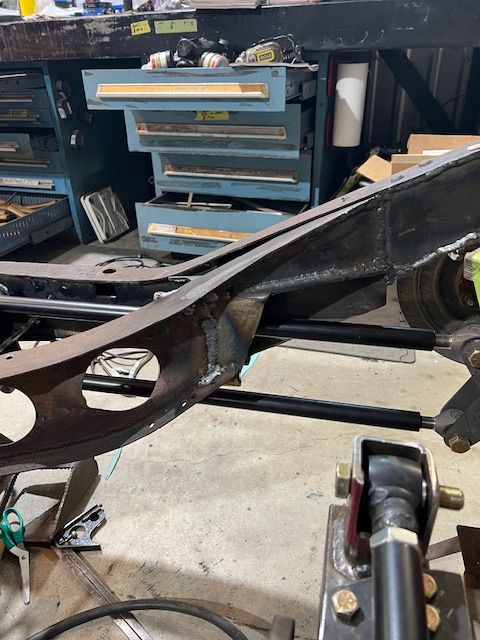

    Finished the Passenger side of frame. Came out a bit cleaner looking, nothing beats experience. Maybe trial and error.
    NTFDAY and v8nutz like this.

  7. #67
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

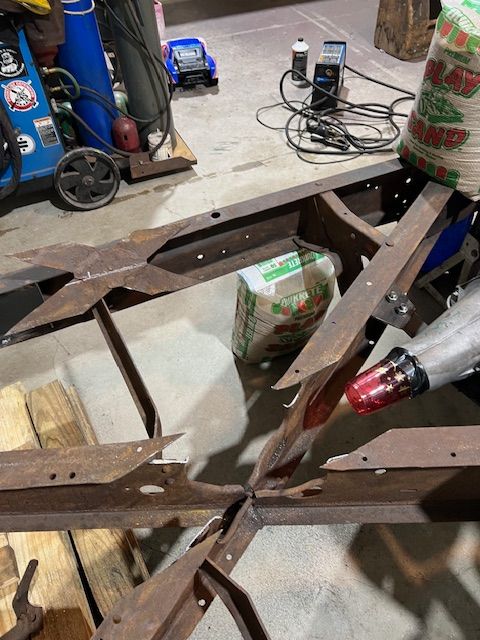

    Moving on to next phase of frame reconstruction .

    Due to the Trans location I need to build a new center section for the X member. 1st cuts have been made .


    I will use this 6"dia. .120" wall tube as a starting point for the new section, it will be cut and oval'ed as it comes out the back edge of the frame for driveshaft clearance.

    NTFDAY and v8nutz like this.

  8. #68
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

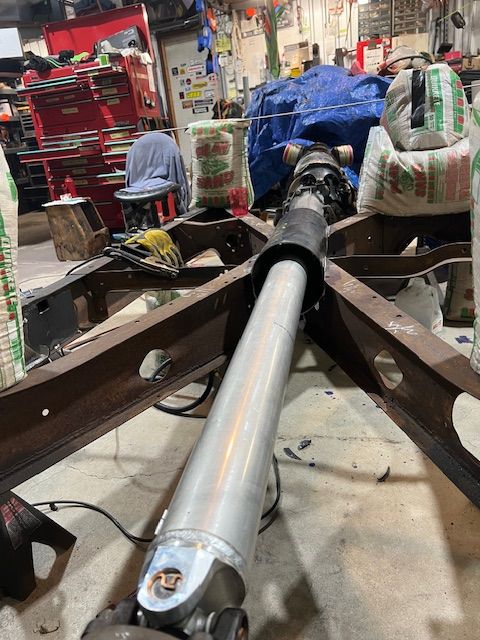

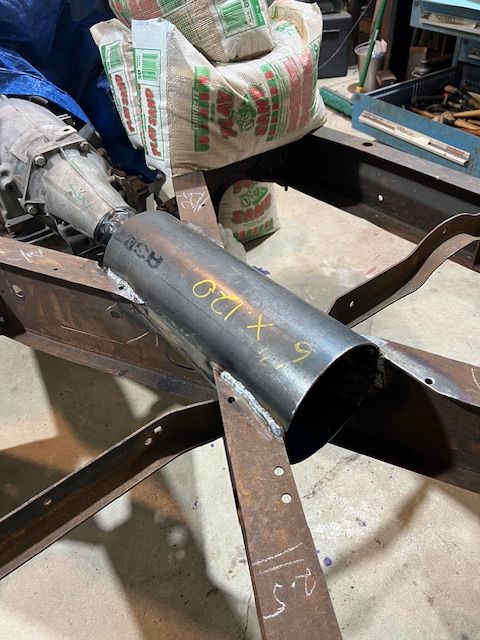

    center section done. I opened up end of the tube by 1.25 inchs giving lots of room for driveshaft travel.


    NTFDAY likes this.

  9. #69
    v8nutz's Avatar
    v8nutz is offline CHR Member Visit my Photo Gallery
    Join Date
    Nov 2016
    Location
    rocklin
    Posts
    639

    Looks sturdy!

  10. #70
    34_40's Avatar
    34_40 is offline CHR Member Visit my Photo Gallery
    Join Date
    Sep 2007
    Location
    New Bedford
    Car Year, Make, Model: 34 Ford 3W Coupe Replica
    Posts
    14,715

    That came out really nice! Good work.

  11. #71
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

    Thanks for thoughts v8nuts and 34-40 I appreciate it.
    34_40 and v8nutz like this.

  12. #72
    34_40's Avatar
    34_40 is offline CHR Member Visit my Photo Gallery
    Join Date
    Sep 2007
    Location
    New Bedford
    Car Year, Make, Model: 34 Ford 3W Coupe Replica
    Posts
    14,715

    Just givin' credit where it's due! You seem to always do such nice work.

  13. #73
    rspears's Avatar
    rspears is offline CHR Member/Contributor Visit my Photo Gallery
    Join Date
    Sep 2007
    Location
    Gardner, KS
    Car Year, Make, Model: '33 HiBoy Coupe, '32 HiBoy Roadster
    Posts
    11,165

    Nice! And it's the ultimate driveshaft loop, too!!
    Roger
    Enjoy the little things in life, and you may look back one day and realize that they were really the BIG things.

  14. #74
    Navy7797 is offline CHR Member Visit my Photo Gallery
    Join Date
    Mar 2013
    Location
    Seguin
    Car Year, Make, Model: 1940 Ford p/u 1937 Caddy Coupe
    Posts
    772

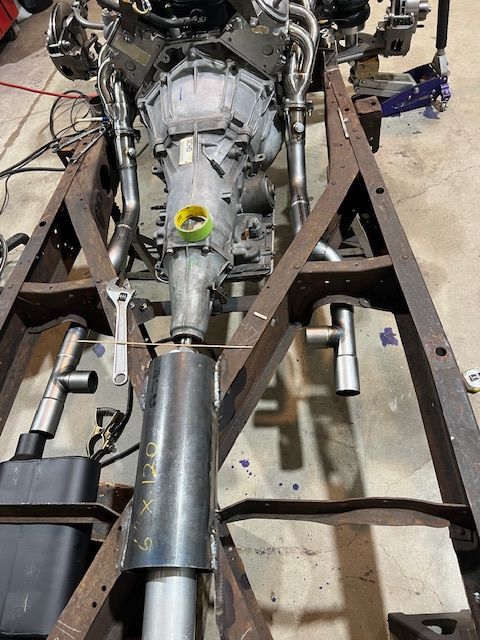

    Got started on exhaust system, 3rd set of headers installed 1st two sets came out of the box gouged and scratched up, sent them back. Most of this is all going to be welded when done, lots of butt joints to make the turns through the frame.
    NTFDAY, johnboy, 34_40 and 1 others like this.

  15. #75
    v8nutz's Avatar
    v8nutz is offline CHR Member Visit my Photo Gallery
    Join Date
    Nov 2016
    Location
    rocklin
    Posts
    639

    Looking good so far. Is that stainless? I kind of enjoy building exhaust with a bare frame, crawling underneath not so much.
    johnboy likes this.
