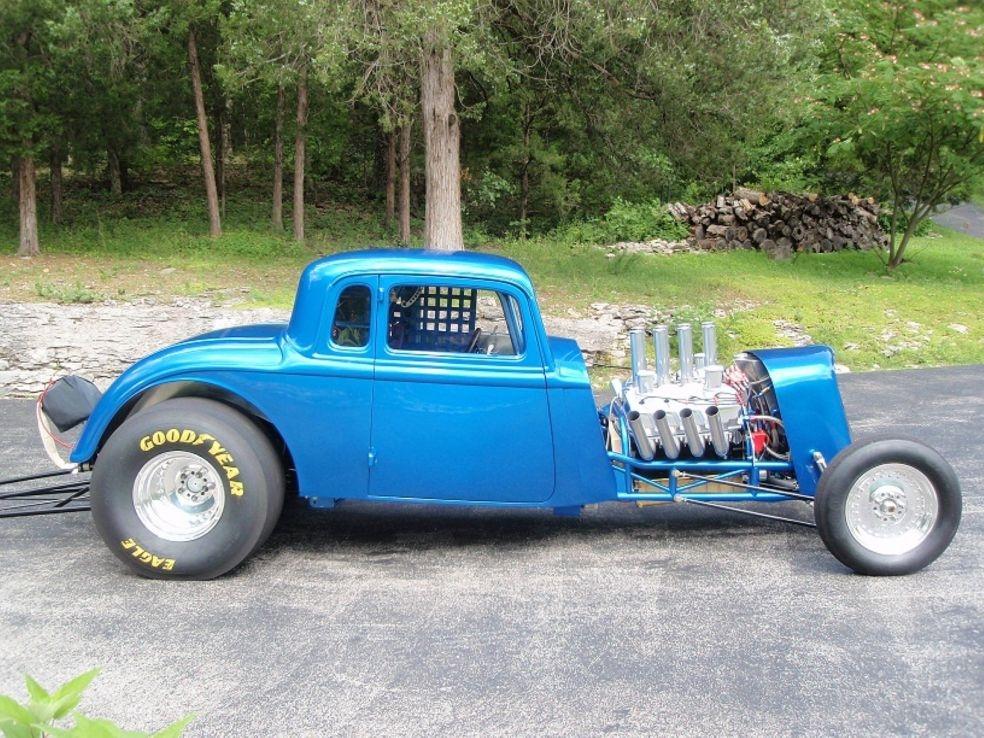

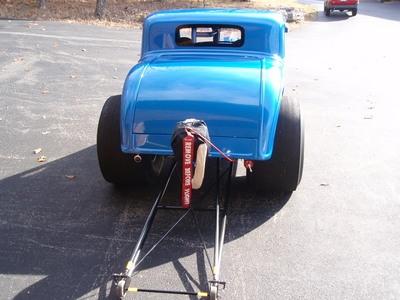

1934 Plymouth PF Coupe
Owner All American 6

Vehicle 1934 Plymouth PF Coupe
Engine Type 472 Hemi
Vehicle Class
Updated 08-25-2012 03:34 AM
Mileage 0 Miles
Price
Purchase Date
URL
Total Views 1

Images (19)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)

View Image
Vehicle Image (0)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)

View Image
Vehicle Image (0)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)

View Image
Vehicle Image (0)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)

View Image
Vehicle Image (0)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)

View Image
Vehicle Image (0)
View Image
Vehicle Image (0)
View Image
Vehicle Image (0)

View Image
Vehicle Image (0)


Description

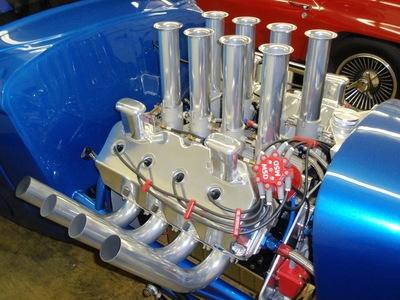

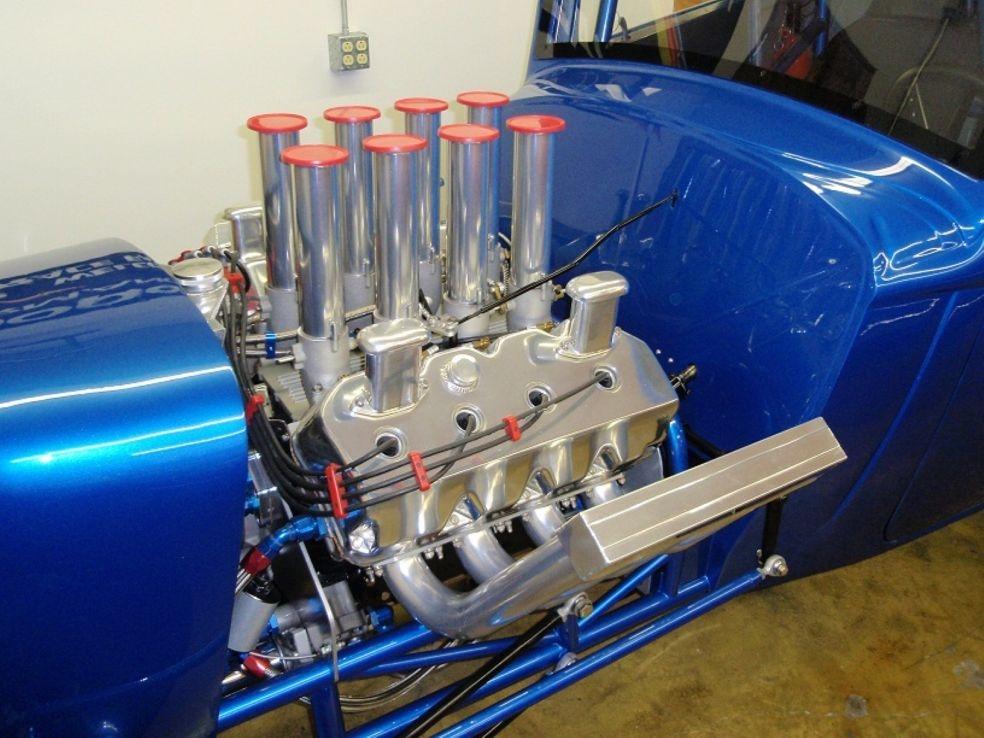

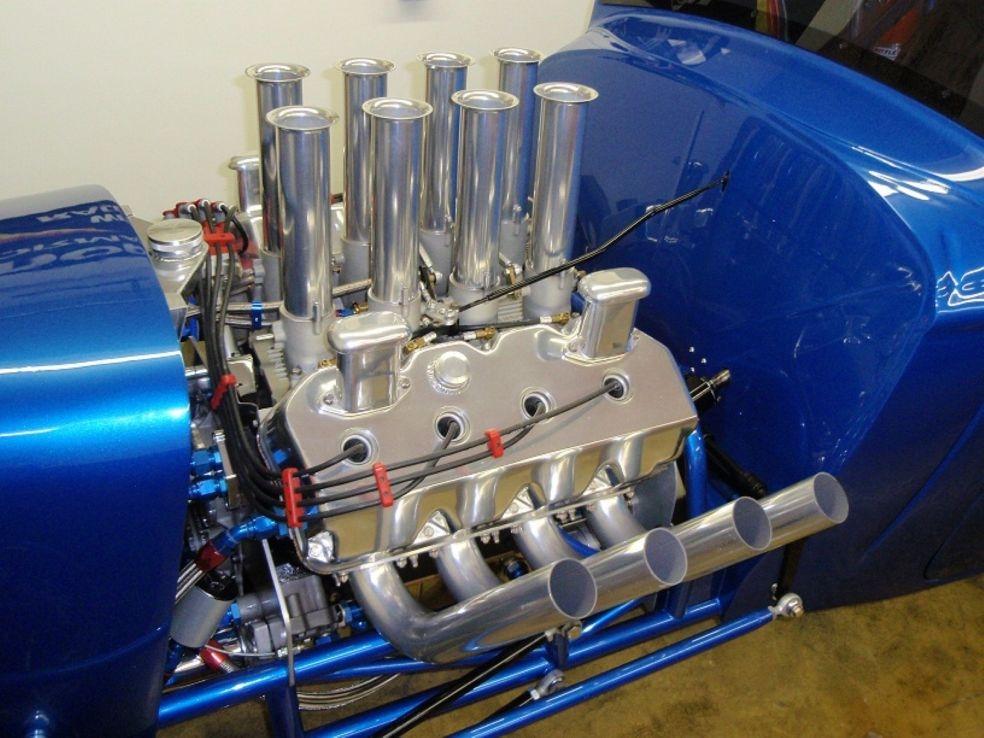

Engine
Engine Builder: AMT Racing Engines
Manufacturer: Mopar
Type: Chrysler HEMI
Displacement: 472 cubic inches
Induction: Hilborn Fuel Injection
Heads: Keith Black single-plug aluminum 'fueler' heads, ported and polished with raised 'D' shaped exhaust port
Block: NEW Mopar siamese-bore iron HEMI, Milodon head studs
Main Caps: Stock HEMI 4-bolt with Milodon studs
Crankshaft: NEW Mopar forged 4.15' stroke HEMI
Connecting Rods: Eagle H-beam steel with ARP bolts
Pistons: JE forged 12.5 to 1
Camshaft: Competition Cams .700" roller
Valves: Ferrea stainless-steel
Valve Train: Indy roller-rockers and shafts, KB aluminum stands
Exhaust: Jet-hot coated Dan Olson zoomies, polished aluminum covers
Milodon gear drive, ATI super damper, Milodon oiling system

Fuel System
Manufacturer: Custom-made aluminum
Capacity: 5 gallons
Fuel Pump: Hilborn mechanical
Fuel Type: 110+ racing gas

Oil/Water System
Radiator: Griffin aluminum, electric fan
Water Rad Location: behind grille
Water Pump: Meziere electric

Electrical System
Ignition: MSD 7al box, Pro-billet distributor
Alternator: Shogun
Battery: Optima deep-cycle yellow top

Transmission
Manfacturer: Chrysler
Type: Torqueflite
Shifter: B&M Pro-Stick reverse pattern with Line-loc button
Converter: Dynamic (Lupo) 9 inch, 5500 stall w/anti-balloon plates
Trans Cooler: Perma-Cool aluminum
Transbrake: A&A Transbrake valve body
Pro-built trans with hardened mainshaft, aluminum drum, steel pump gear, Ultimate Sprag, etc.

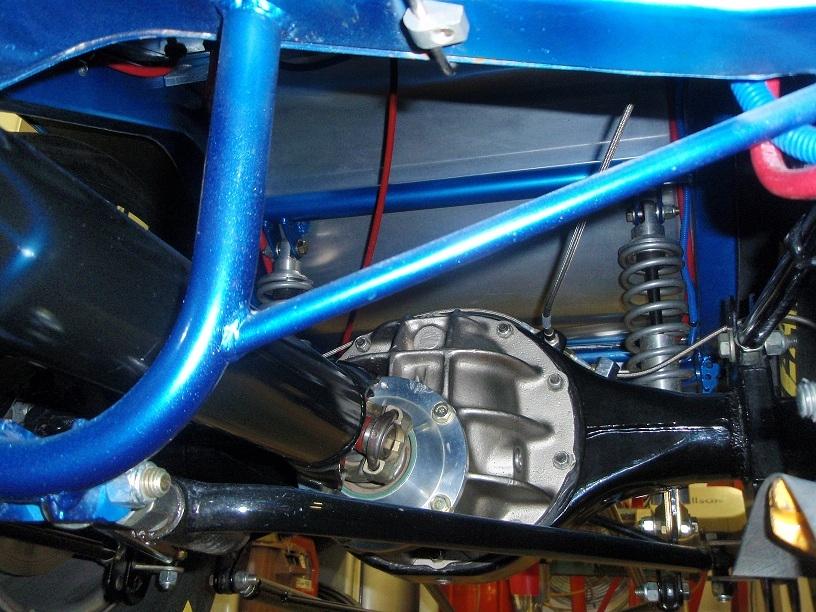

Rear End
Manufacturer: Ford
Type: 9-inch
Ratio: 4.56 Richmond
Case: Moser nodular iron
Spool: Moser steel
Axles: Moser 40-spline alloy
Fully-braced, narrowed and powdercoated housing

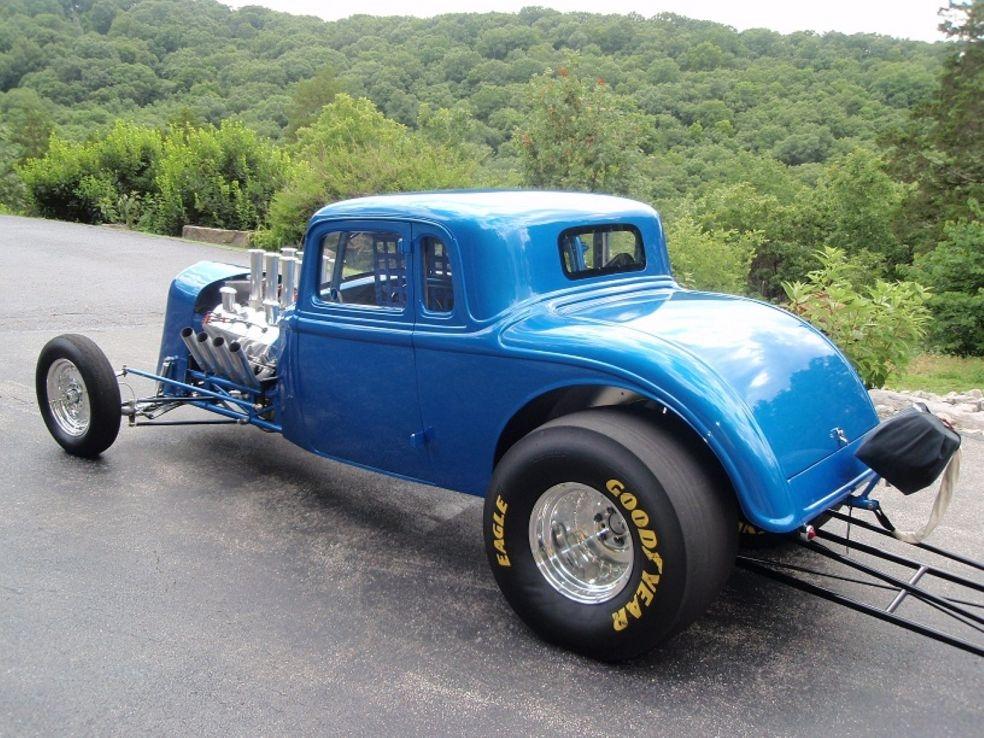

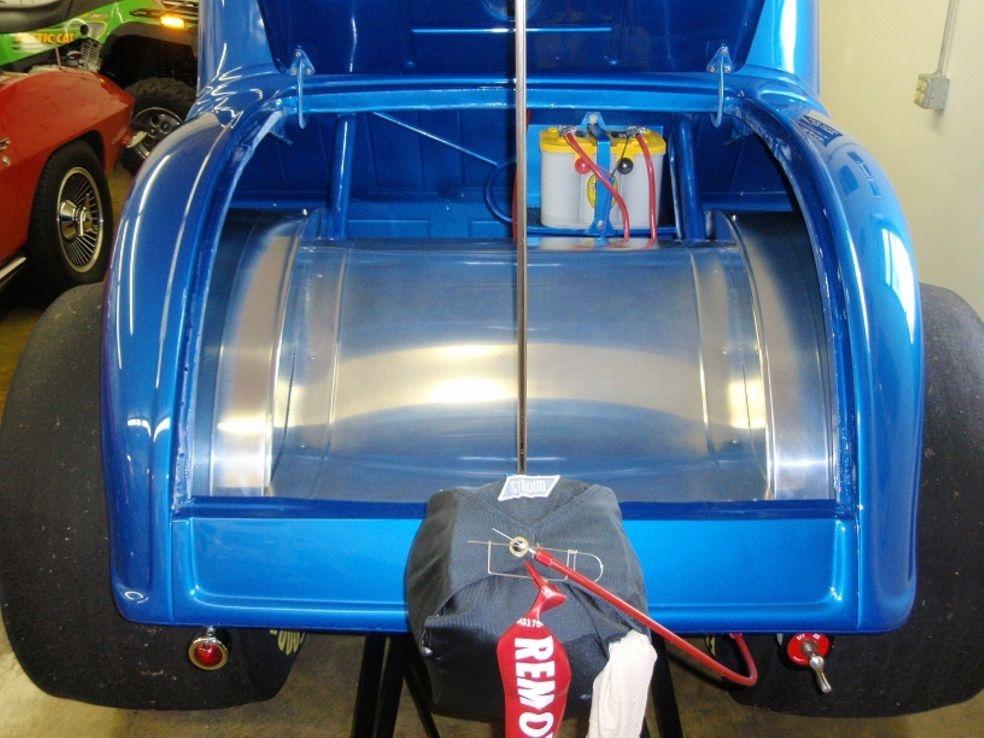

Body
Construction: Original STEEL body and doors. 'Bear Claw' 2-stage door latches
Color: 'Intense Blue' metallic pearlcoat
Paint: Base coat/ clear coat

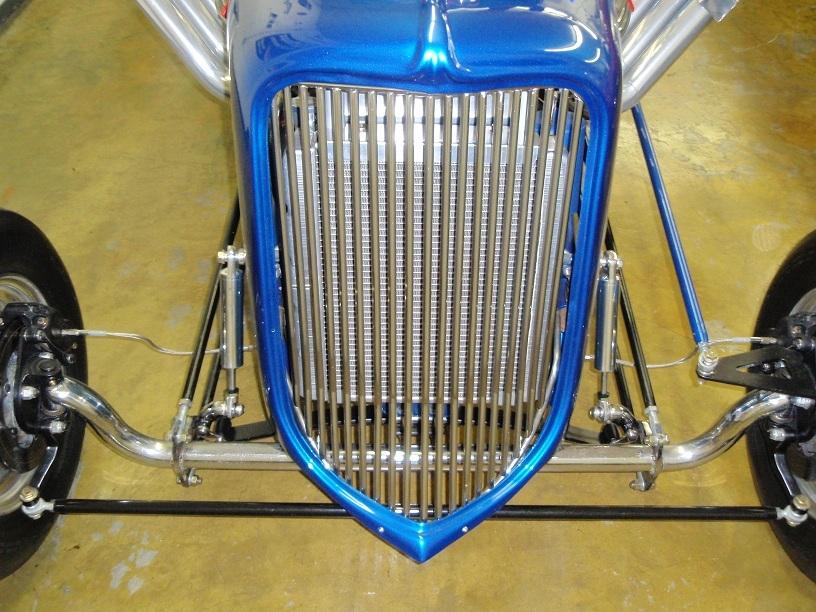

Lexan windows, custom-made polished stainless-steel grille, radiused rear wheel openings

Chassis
Type: Full tube frame
Builder: Jeffers Pro Cars
Material: Chrome-moly and mild steel
Finish: painted body color
Certification: NHRA certified to 7.50 until 8/11
Front Suspension: 4-bar with chrome 6-inch drop tube axle

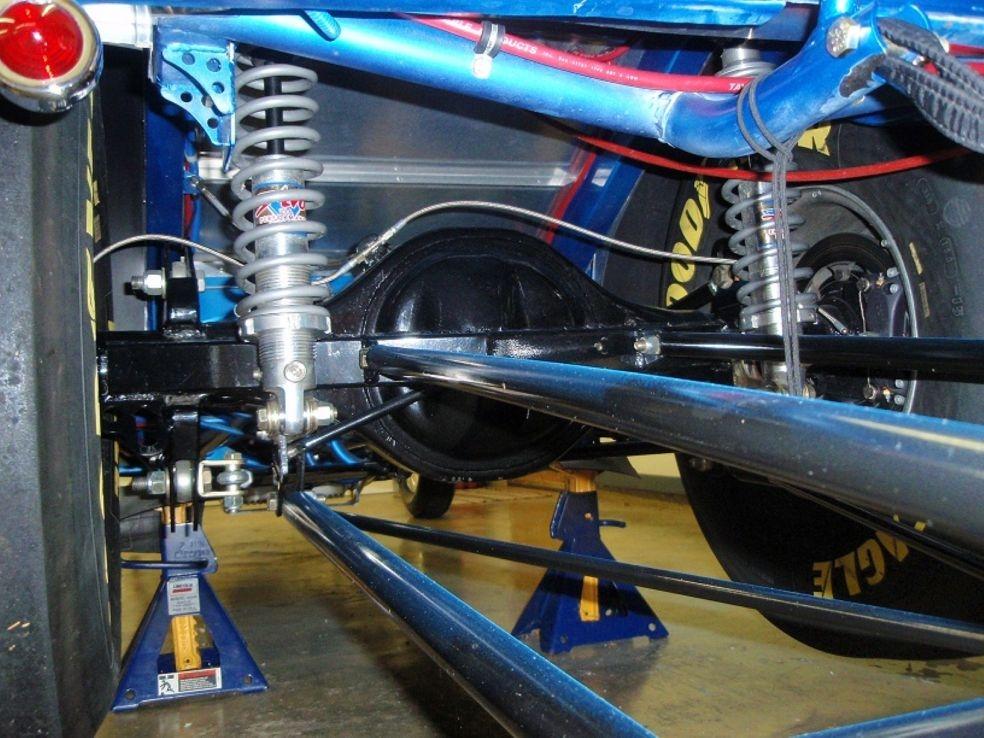

Rear Suspension: Chassisworks 4-link with coil-overs, wishbone
Shocks: Front-ProShock polished aluminum race type, Rear- AVO Aluma-Star coil-overs
Brakes: Wilwood racing disc brakes, front & rear
Steering: Funny car type
Wheels: Polished Centerline Super-tricks
Tires: Goodyear 15 X 33 slicks, Goodyear Front-runners

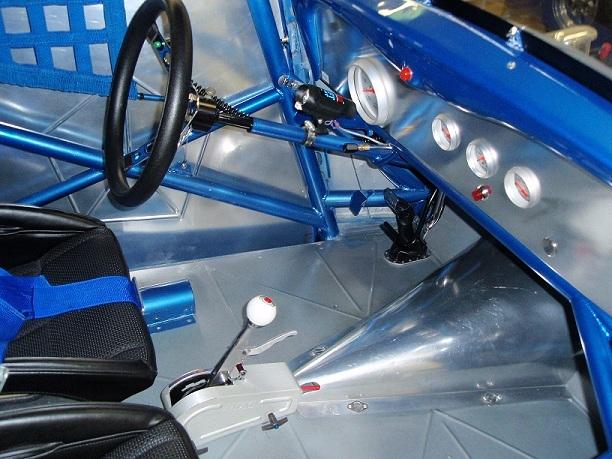

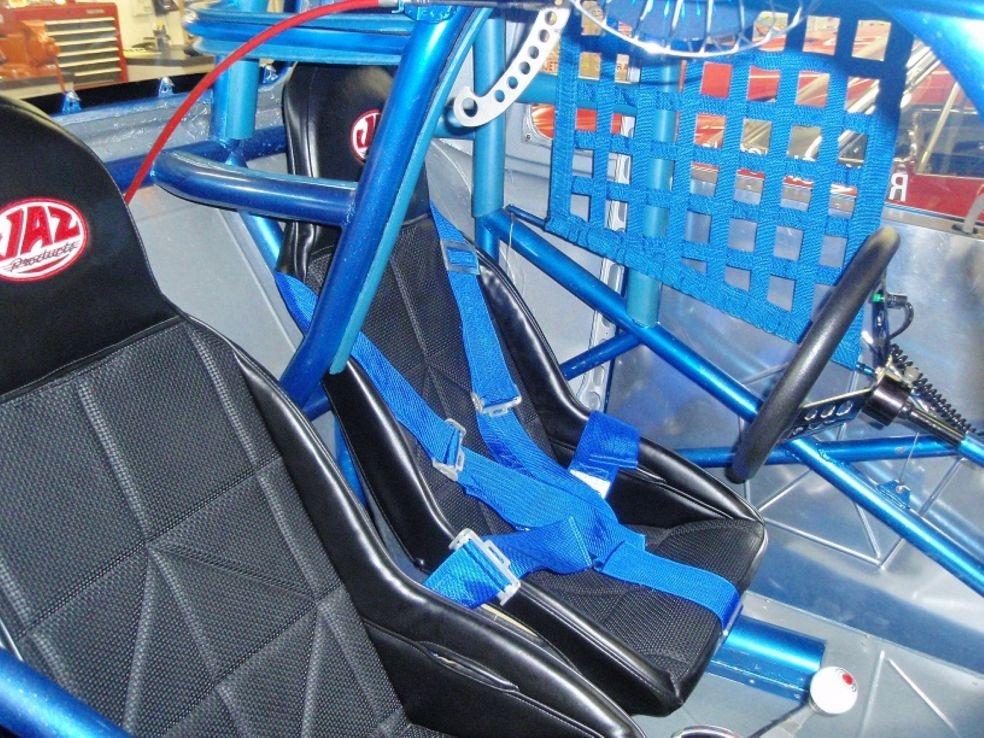

Interior
Color/Finish: Blue with silver accents & floor, black JAZ seats
Material: aluminum door panels,steel floor
Fire System: 5 lb. Fire bottle with emergency handle
Restraints: RCI 5-point cam-lock harness, window net
Guages: Autometer Ultra-Lite, Bickle switch panel
Steering Wheel: removeable, padded 3 spoke with trans-brake button

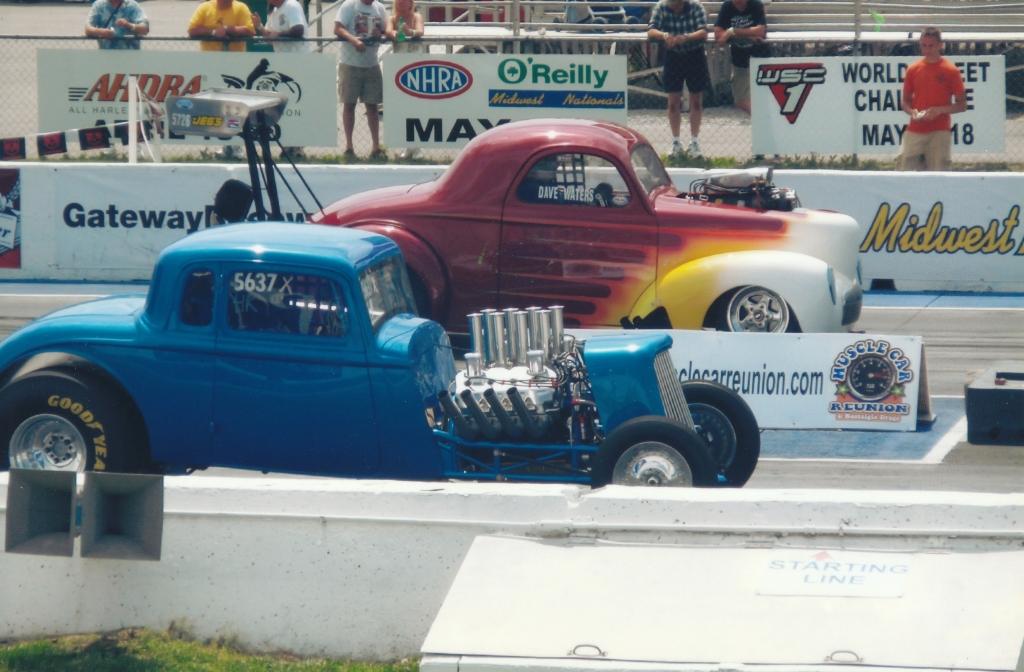

Timeslips
  R/T 60 Foot 330 Foot 1/8 Mile 1/8 Mile 1000 Foot 1/4 Mile 1/4 Mile

0.638
1.283
3.716
118.00
7.601
143.46
